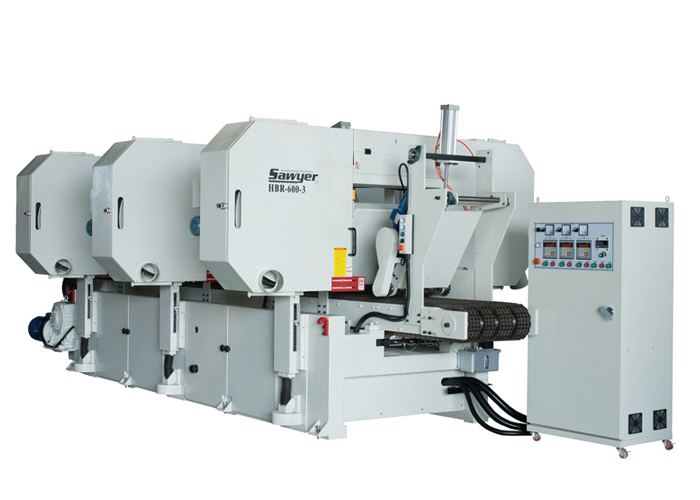

HBR-600-3
-
Specifications
-
****STANDARD EQUIPMENT****Model HBR-600-3 Maximum Cutting Capacity(WxH) 600x500mm Distance From Blade To Conveyor 5~300mm Minimum Cut Piece 5 mm Saw Wheel Diameter 36”(915mm) x 6 Saw blade Length 6600mm Saw Blade Width 4”(100mm) Conveyor Size 600mm Feed Speed (Variable) 0~15 m/min Conveyor Height From Floor 36-1/2”(926mm) Saw Wheel Motor 40 HP x 3 Blade Lift Motor 1HP x 3 Feeding Motor 10 HP WITH INVERTER Power Infeding Pressure Roller 3/4 HP x3 Dust Hood Outlet Diameter 6”x9 Chain Conveyor Net / Gross Weight 8800KG / 9360 KG Machine Size 2645x296x20CM Packing size 1) 397x228x228 CM 2)662x200x232 CM Packing Pallet x 2 底板x 2件 Design and specifications are subject to change without prior notice.
1.HYDRAULIC BLADE TENSION SYSTEM
2.BLADE LIFT DIGITAL CONTROL
3.OIL MIST COOLING SYSTEM
4.SAWBLADE x 1 PC
5.TOOL BOX WITH SERVICE TOOLS
OPTION
1.PLC CONTROL WITH TOUCH SCREEN
