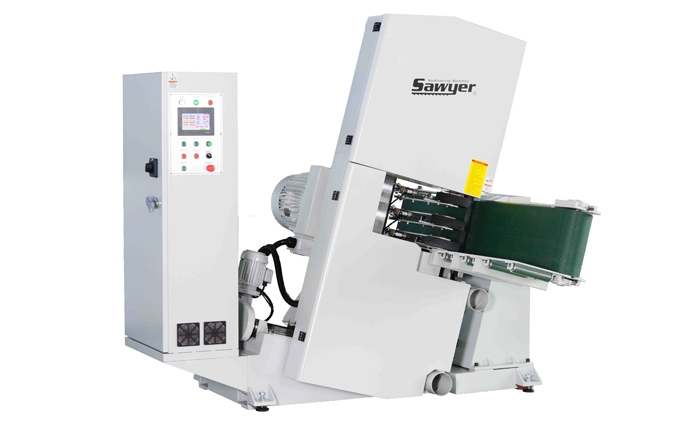

HB-800A
-
Specifications
-
****STANDARD EQUIPMENT****Model HB-800H
HB-800T Maximum Material Size (WxH) 500x350mm 300x300mm Fance/Blade Movement 200 mm 3~300 mm Feed Roller Open 300mm - Minimum Cut piece 3mm Saw Wheel Diameter 31.5”(800mm) Saw Blade Length 4980mm Saw Blade Width 2“ (50mm) Conveyor Belt Size(WxL) - 270x4200mm Feed Speed(Variable) 0~30 M/min Table Height From Floor 890mm 1000mm Saw Wheel Motor 25/30 HP 30 HP x2 Fance/Blade Positioning Motor 1/2 HP x1 1/2 HP x2 Feeding Motor 1 HP with Inverter Dust Hood Outlet Diameter 4”x2 (100mmx2) 4”x4 (100mmx4) All specifications and design are subject to change without notice.
1.PLC CONTROL WITH TOUCH SCREEN
2.HYDRAULIC BLADE TENSION SYSTEM
3.OIL MIST COOLING SYSTEM
4.SAWBLADE x 1 PC
5.TOOL BOX WITH SERVICE TOOLS
