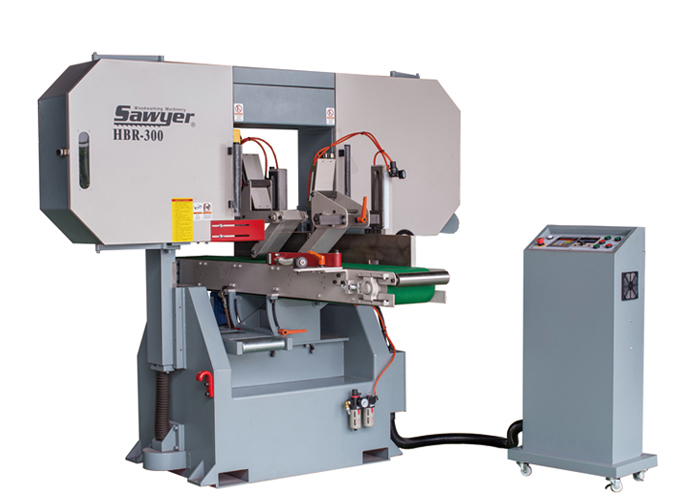

HBR-300
-
Specifications
-
****STANDARD EQUIPMENT****Model HBR300 Maximum Material Size (W X H) 12"x 12 "(300x300 mm) Distance From Blade To Conveyor
5/64"~10-5/8"(2~270mm) Minimum Cut Piece
2mm Saw Wheel Diameter
28" x2(700mm x2) Sawblade Length
196"(4980~4990mm) Sawblade Width
2" OPTION 3"(50mm OPTION 75mm) Conveyor Belt Sizes(Wxl)
270 x 4200mm Sawblade Speed
25.4m/s Feed Motor
1HP WITH INVERTER Feed Conveyor Tilt
0~30 DEGREE Feed Speed (Variable)
0~18 m/min Conveyor Height From Floor
40"(1016 mm) Saw Wheel Motor
20 HP Blade Lift Motor
1/2 HP Dust Hood Outlet Diameter
ø4"x2 Machine Dimensions (L X W X H)
2235 x 2180 x 1880 mm Packing Dimensions (L X W X H)
2450 x 2250 x 2200 mm Net Weight
1355KGS Gross Weight
1480KGS Design and specifications are subject to change without prior notice.
1.HYDRAULIC BLADE TENSION SYSTEM
2.BLADE LIFT DIGITAL CONTROL
3.OIL MIST COOLING SYSTEM
4.SAWBLADE x 1 PC
5.TOOL BOX WITH SERVICE TOOLS
OPTION
1.PLC CONTROL WITH TOUCH SCREEN
