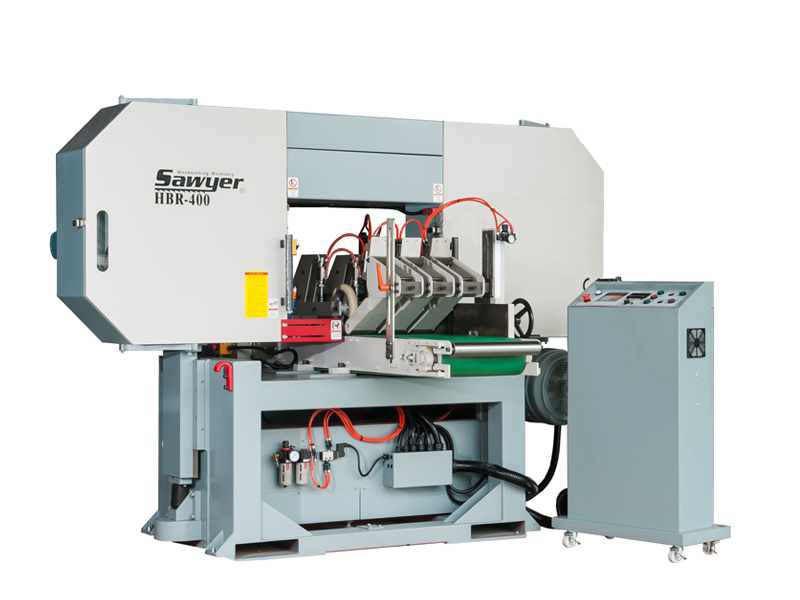

HBR-400
-
Specifications
-
****STANDARD EQUIPMENT****Model HBR-400 Maximum Cutting Capacity(W X H) 16-1/2" x 10"(420x250mm) Distance From Blade To Conveyor 1/4"~10-5/8"(5~270mm) Minimum Cut Piece 5mm Saw Wheel Diameter 32"x2(800mm x2) Sawblade Length 5860 ~ 5870 mm Sawblade Width 3" OPTION 4" (75mm OPTION 100mm) Sawblade Speed 6150FPM Conveyor Belt Sizes (W X L) 16" X 165-1/2" (400*4200mm) Feed Speed (Variable) 0~18 m/min Conveyor Height From Floor 37"(940mm) Saw Wheel Motor 30HP Feeding Motor 2HP With Inverter Blade Lift Motor 1/2HP Dust Hood Outlet Diameter 4" x2(100mm x 2) Packing Dimensions (L X W X H) 280*228*225CM Net Weight 1960 KGS Gross Weight 2160 KGS Design and specifications are subject to change without prior notice.
1.HYDRAULIC BLADE TENSION SYSTEM
2.BLADE LIFT DIGITAL CONTROL
3.OIL MIST COOLING SYSTEM
4.SAWBLADE x 1 PC
5.TOOL BOX WITH SERVICE TOOLS
OPTION
1.PLC CONTROL WITH TOUCH SCREEN
